• PT9800PCN computer connectable label printer

• Tape type: TZ

• Tape widths: 3.5, 6, 9, 12, 18, 24 & 36mm

• Print type: direct thermal


• Print speed: 20mm / second

• Print resolution: 360dpi

• Maximum print height: 27.1mm

• Maximum print length: 1000mm

• Tape cutter: auto full cutter and half tape cutter

• Barcode types (machine side): CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN-13(JAN13), EAN-8, GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked), PDF417(Standard, Truncate, Micro), QR Code(Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode

• Computer connectivity: PC and  Mac. Running under Windows 2000 Professional, Windows XP Professional, Windows Vista, Windows 7, Windows Server 2003 / 2008, Mac OS 10.4 - 10.6

• Software supplied: Windows: P-touch Editor 5.0, P-touch Editor Lite LAN 1.0, Printer Driver, P-touch Template tools, ESC/P tools, BRAdmin Light. Mac: P-touch Editor 5.0, Printer Driver, P-touch Template tools, ESC/P tools, BRAdmin Light for Mac

• Interface: USB (Ver 1.1), 10/100BaseTX Ethernet

• Included: PT-9800PCN, CD-ROM [P-touch Editor 5.0 for Windows, P-touch Editor Lite LAN 1.0, P-touch Editor 5.0 for Mac, Printer Driver, Software User's Guide, Network users guide, P-touch Template tools, ESC/P tools, BRAdmin Light for Windows, BRAdmin Light for Mac, HG tape(24mm Black on White Laminated Tape), USB cable, AC Adaptor

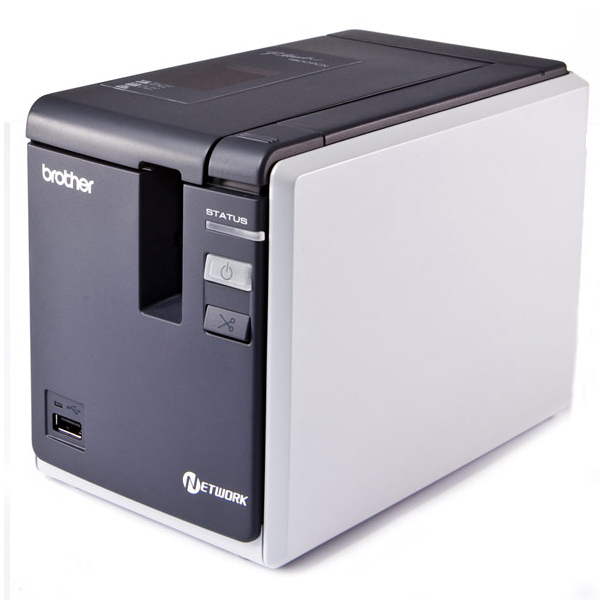

This top end label maker connects directly to your PC or Mac. It will print high quality, durable labels up to 36mm wide using the in-built USB port and the other remarkable feature is that it is a networkable printer and includes network administration software.

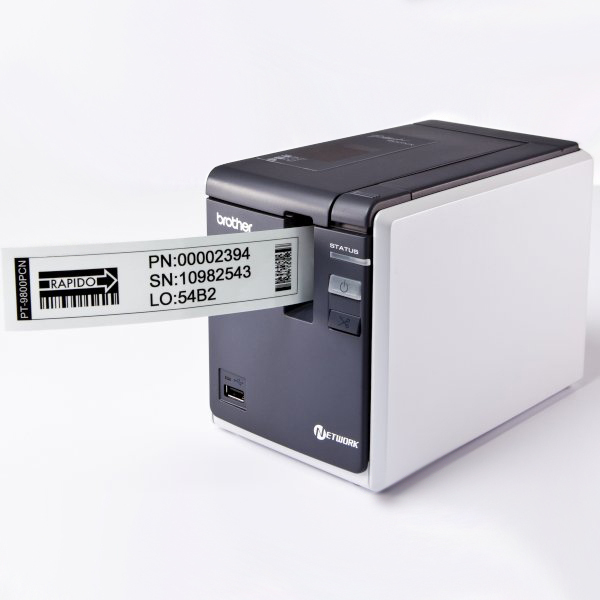

The machine features both a full auto cutter, and half cutter that will allow you to print a strip of labels and peel them off individually.  Included is Brother's PTouch Editor software that will allow you to design and print labels containing any images, barcodes and data stored n your computer.

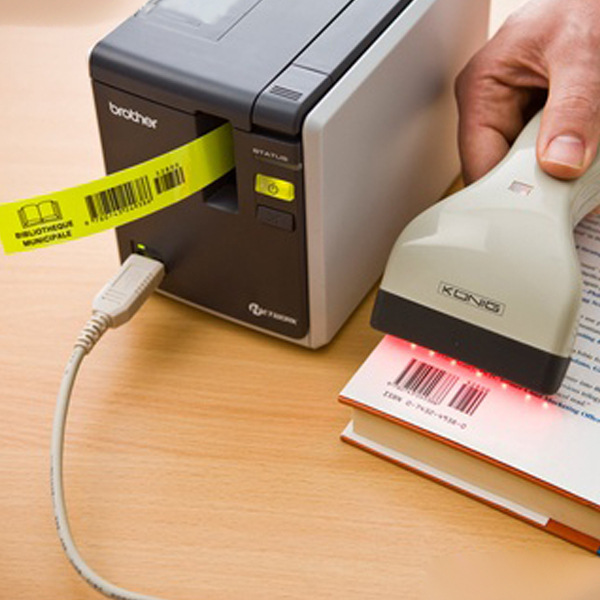

Another unique feature is the ability to produce stand alone copies and prints of barcodes using a hand held scanner...no need to connect to a computer.

Full specifications can be downloaded below.

Visit
here
for the latest drivers, updates and other software utilities.

Visit here for the latest FAQ's and troubleshooting on the PT9800PCN




SKU PT9800PCN
